Item number: 1804-EE-HX50BWF.PD8N.54L

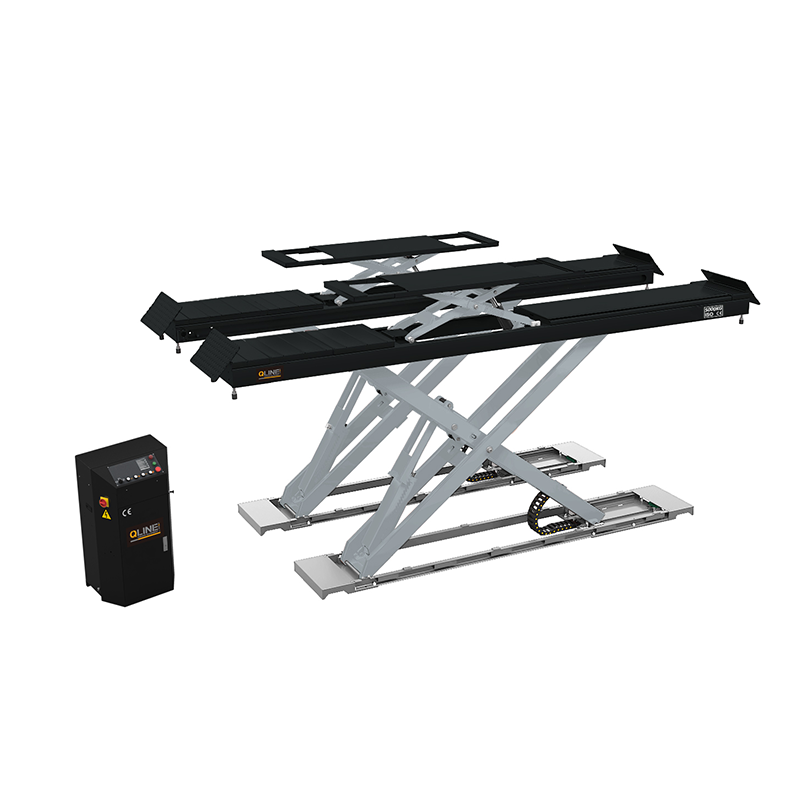

Q-LINE HX50 + PLAY DETECTER IS A COMPLETE AND PROFESSIONAL INGROUND RUNWAY LIFT THAT COMBINES HIGH LIFTING CAPACITY WITH ADVANCED FUNCTIONALITY FOR BOTH ALIGNMENT TASKS AND INSPECTION CHECKS.

With a capacity of 5,000 kg and 5,400 mm long alignment runways, the lift is ideal for everything from passenger cars to vans.

It is equipped with an integrated play detector, approved according to 2014/45/EU, making it perfect for use in inspections and troubleshooting.

In addition, the lift features a built-in panel lift, alignment runways, and LED work lights, together creating an efficient and ergonomic workstation.

With an ultra-fast lifting time of just 25 seconds and a lifting height of 2,130 mm, the HX50 + Play Detector is both efficient and comfortable to work with – every day.

Installation of the lift requires a minimum concrete thickness of C25/C30 250 mm.

FEATURES

• With built-in Play Detector approved according to 2014/45/EU
• The Play Detector enables inspection of steering and suspension
• Incl. freewheel lift with a lifting capacity of 4,000 kg
• 5,400 mm long alignment runways
• With built-in LED lighting
• Lifting time of only 25 seconds
• Installation requires a minimum concrete thickness of C25/C30 250 mm

SPECIFICATIONS

• Capacity: 5,000 kg
• Lifting height: 310 - 2,130 mm
• Max. capacity freewheel lift: 4,000 kg
• Lifting time: 25 s
• Runway length: 5,400 mm
• Height: 310 - 2,130 mm
• Width: 850 - 950 mm
• Length: 5,100 mm
