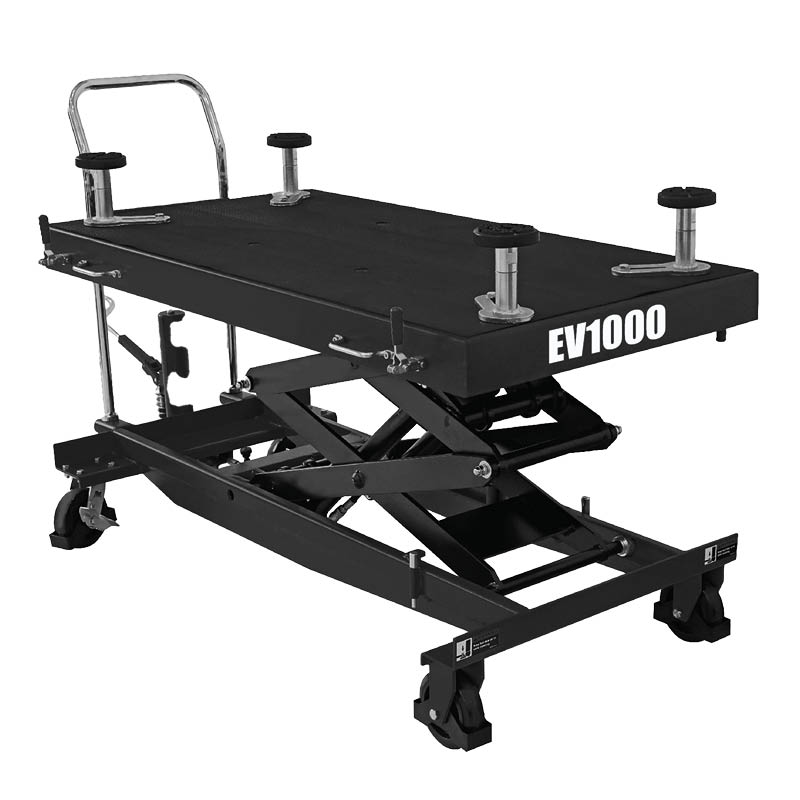

Q-LINE BY AHCON EV1000
THE Q-LINE BATTERY LIFTING TABLE MAKES THE WORK WITH HEAVY BATTERIES EASY AND SECURE
With a lifting capacity of up to 1,000 kg and an adjustable lifting height from 550 to 1,750 mm, the table can be adapted to work with electric cars and other heavy components.
The table top can be moved 80 mm horizontally, which gives increased precision when positioning in relation to lifting points.
The battery lifting table is raised manually using a foot pump.
With this battery lifting table, batteries can be handled safely and efficiently.
Whether working with electric cars or heavy components, this lifting table is an ideal choice for the workshop.
FEATURES
- Floating table provides 80 mm of movement for precise positioning
- Lifts up to 1,000 kg
- Compact design
- Raised manually
SPECIFICATIONS
- Lifting capacity 1,000 kg
- Lifting height 550 - 1.750 mm
- Dimensions 2.135 x 925 x 1.065 mm
- Total weight 282 kg
